Real HVAC service documentation
HVAC diagnosis and component service documented on site.
HVAC repair should begin with diagnosis. These real service photos document test equipment, a capacitor replacement, the installed component, and work inside the outdoor unit.
Project sequence
Real photos from the work.
Pressure gauges used as part of system diagnosis.

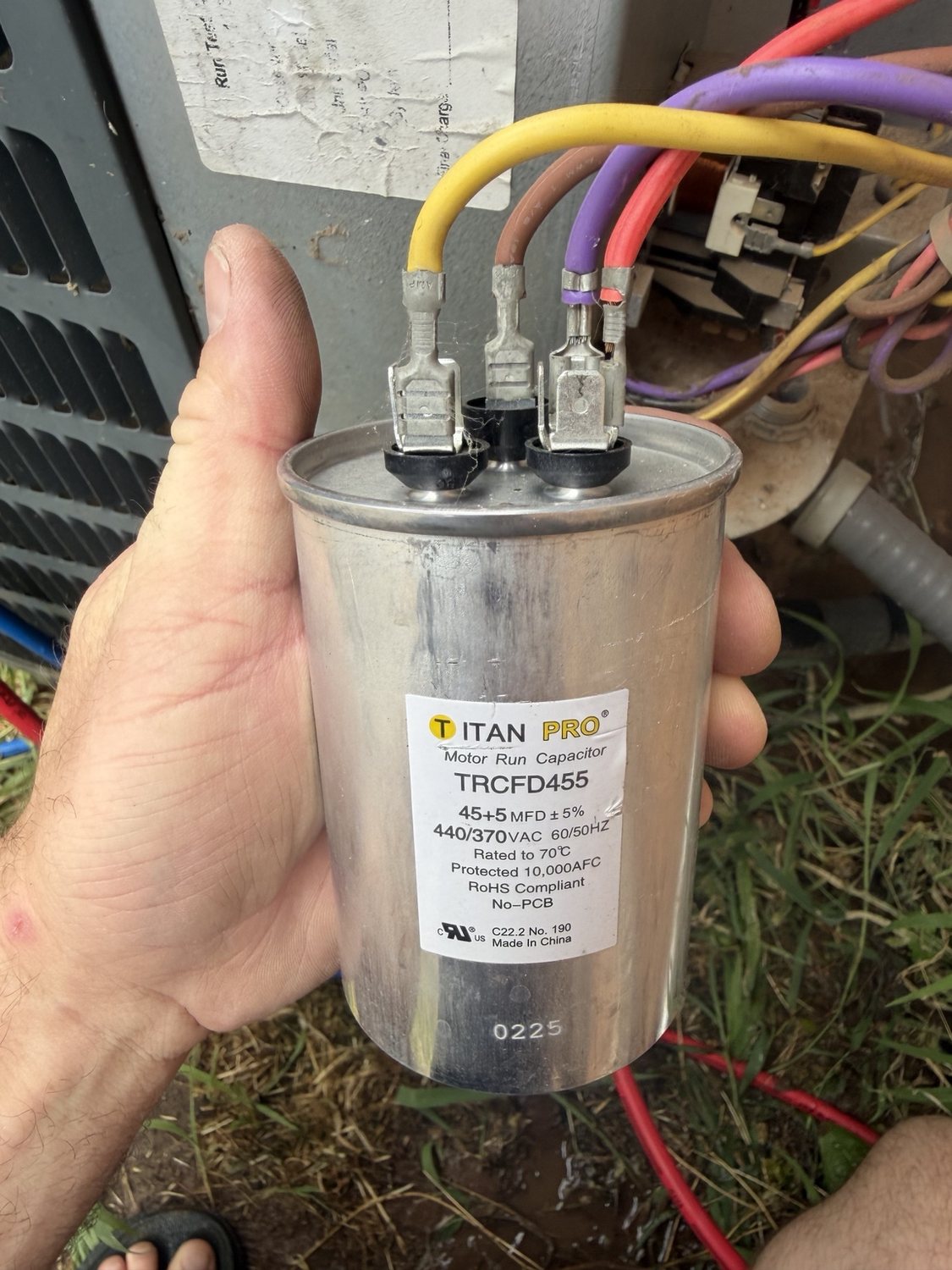

Documenting the capacitor during service.

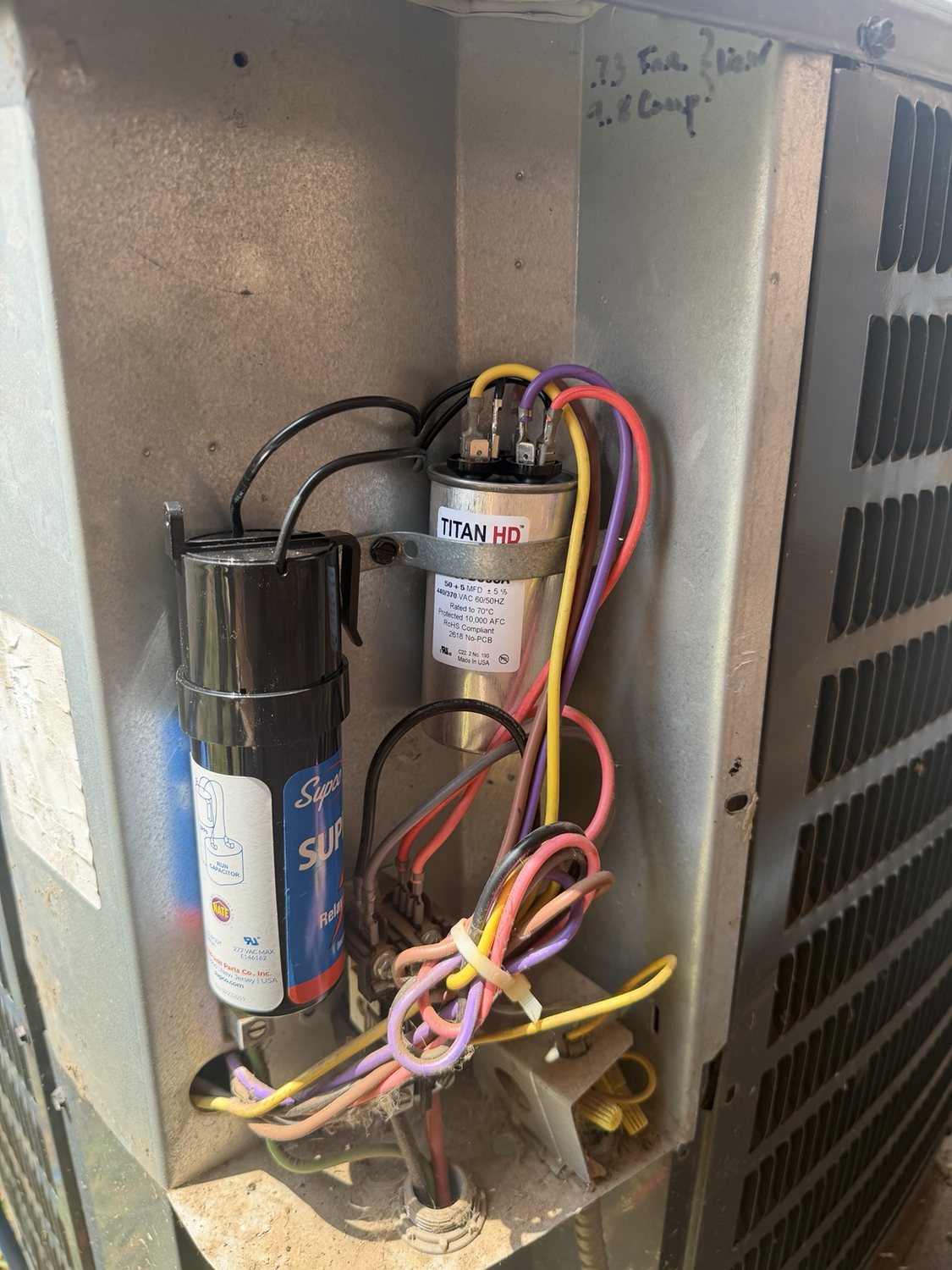

Installed capacitor and wiring inside the outdoor unit.

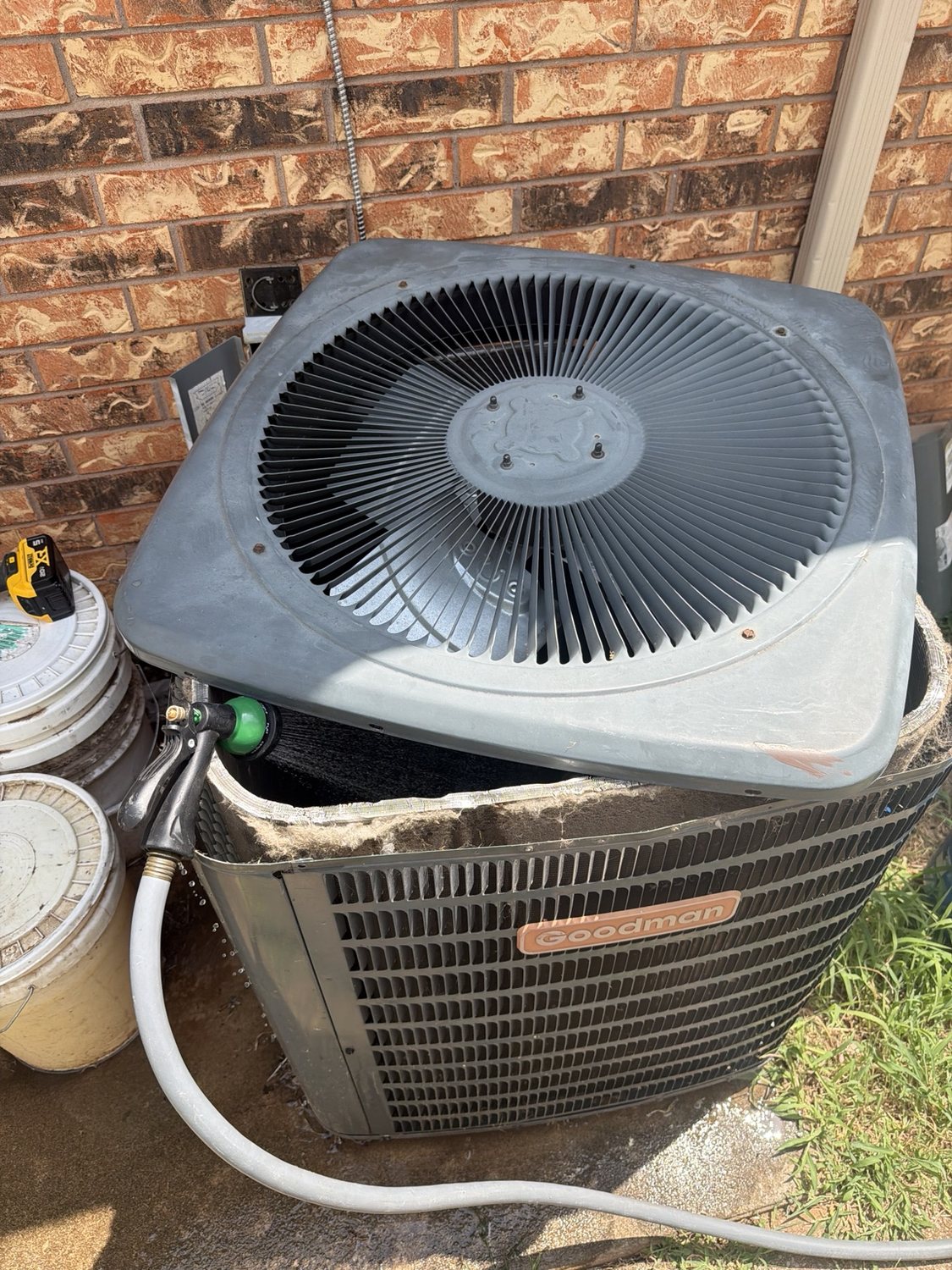

Work performed inside the condenser cabinet.
Why documentation matters
Photos turn hidden or temporary conditions into a permanent project record.
That record helps explain what was found, what changed, and what was completed. It also gives future service work a better starting point.
Project takeaways
- Symptoms should be diagnosed before replacing components.
- Photos help explain what was found and changed.
- Mechanical service can be connected to finish repairs when condensate, access, or equipment conditions affect the property.
